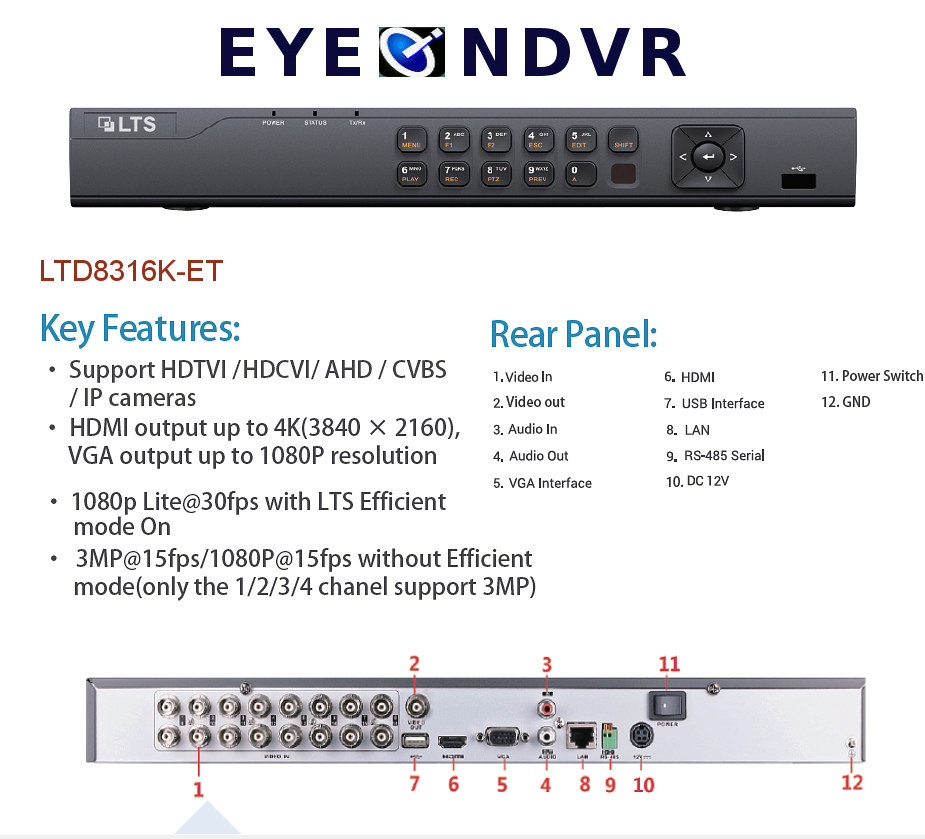

LTS H.265+ Platinum Pro 16Ch 4TB HD-TVI HD-CVI AHD SD IP DVR 3MP/1080P LTD8316K-ET 4TB

$399.00  $379.00
Save: 5% off

Always Free Shipping
Add to Cart:

  • Model: LTD8316K-ET-4TB
  • Manufactured by: LTS



16 channels support HD-TVI / AHD/ ANALOG / CVI / IP input (5 in 1)

H.265+ Format: Save HDD space more than 40% compare to H.264+

3MP 1536P/1080P HD-TVI input 16ch + 2 IP(4MP)ch 4TB HDD WD Purple Grade

  • 16 Channel Video Recorder H.265/H.265+
  • Support HD-TVI / AHD/ ANALOG / CVI / IP input (5-in-1)
  • 1-4 Channel support up to 3MP HD-TVI input
  • Up to 2-Ch 4MP IP Cameras input
  • Support Live View, Storage, Playback up to 16 HD-TVI/Analog Cameras + 2 IP Cameras
  • Up to 4K (3840X2160) HDMI Video Output
  • CVBS Output
  • 2 SATA up to 16TB HDD
  • 1 USB 2.0, 1 USB3.0
  • 1080P@30fps with LTS efficient mode on
  • 780456279600

Recorder Series Platinum Series
Recorder Channel 16-Channel
Recorder Case 1U Case
Recorder Technology TVI DVR
Specifications
Model Name LTD8316K-ET
Video Compression H.265+
Audio Compression G.711u
IP Video Input 2-ch, Up to 4 MP resolution, supports H.265+/H.265/H.264 Zip+/H.264 IP cameras
HD-TVI Input

3 MP, 1080p30,1080p25, 720p60, 720p50,720p30,720p25
Note: The 3 MP signal input is only available for channel 1/2/3/4

Support HDCVI, AHD, 1080p25, 1080p30, 720p25, 720p30
CVBS Input Support
Simultaneous Playback 16CH
Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ)
HDMI VGA Output

VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz,
1280 × 720/60Hz, 1024 × 768/60Hz

Encoding Resolution

When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode enabled: 3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF

CVBS Output 1-ch, BNC (1.0 Vp-p, 75 kΩ), resolution: PAL: 704 × 576, NTSC: 704 × 480
USB interface Front panel: 1 ×USB 2.0, Rear panel: 1 ×USB 3.0
Two Way Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1st audio input)
Capacity 2 SATA/ Up to 8TB capacity for each disk
Casing 1U
Power supply 12 VDC
Consumption ≤ 25W
Operating Temperature -10 °C ~ +55 °C(14°F - 131°F)
Product Dimension 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
Product Weight ≤2 kg (4.4 lb)
